SENSE Architectural Downlight System

SENSE

SEN-XX·7 apertures · 1″–5″

Fixed · Adjustable · Wall wash · Multiple

Specifications →
SENSE square fixed downlight in white/silver finish

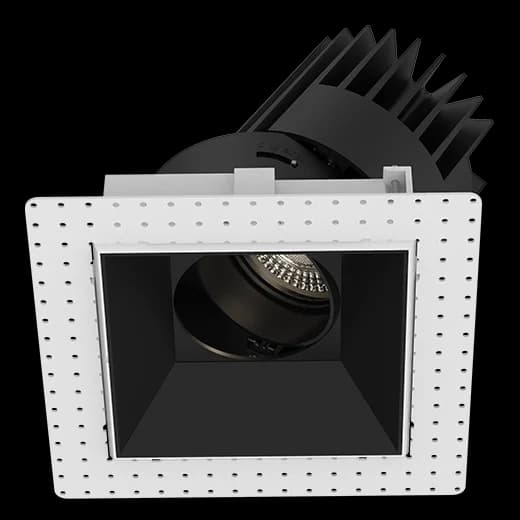

SENSE trimless square adjustable downlight with black reflector

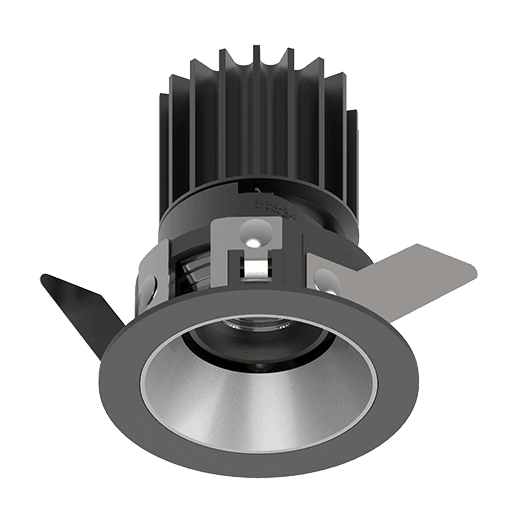

SENSE adjustable round downlight in dark matt finish

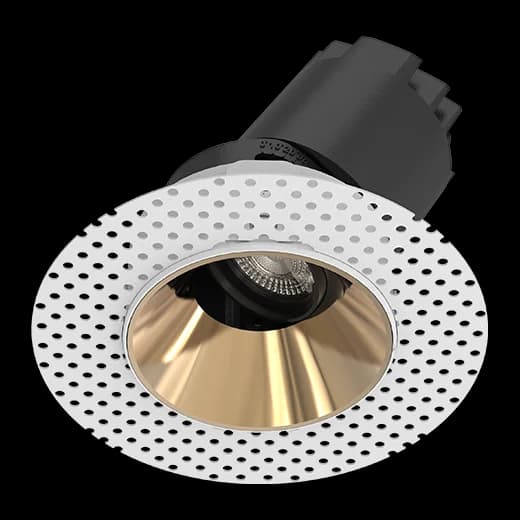

SENSE trimless round downlight with gold reflector
1″–5″ Apertures
90+ CRI
5 CCT Options
ETL Certified

The System

The complete downlight system.

SENSE downlights in modern office — Finance Office, Trondheim

7 Products — 1″ to 5″

SENSE 1.01″7W600lm
SENSE 2.02″12W1,000lm
SENSE 2.0 Multiple2″24–36W3,000lm
Wall Wash2″12W900lm
SENSE 3.03″18W1,800lm
SENSE 4.04″25W2,800lm
SENSE 5.05″35W4,200lm

Configure

Build your SENSE specification.

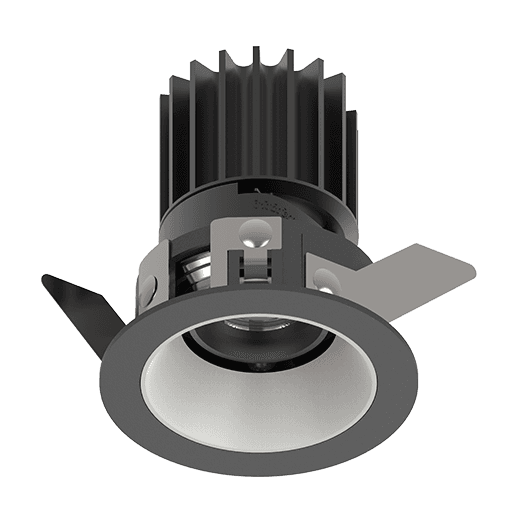

SENSE 2.0 Round trim downlight — product view
2″

Black housing, white trim

SENSE 2.0

Shape

Lumen Output

Beam Angle

Reflector

Fixture Options

Color Temperature / CRI

80 CRI

Standard — commercial, office, circulation

90 CRI

Recommended — hospitality, retail, art, residential

Housing Type

Driver / Control

Housing Options

Black housing, white trim

Trim Flange

Trim Color

Affects ceiling cutout dimension

Model Number

Component breakdown
Fixture
SEN-2R-A-8L-NF-940-SP
Trim
SEN-2R-SF-BL
Housing
SEN-2R-SF-8L-NC-010UNV

Downloads

Spec SheetComing soonIES FileComing soonBIM FileComing soon

Performance

Delivered

673

lumens

Power

9

watts

Efficacy

75

LPW

673 x 1.00 x 1.00 x 1.00 x 1.00 = 673 lm

Ceiling Cutout

70mm

2-3/4"

70mm

Specs

Voltage120/277V
THD<20%
Power Factor>0.9
Tilt30° / 355° rotation
Ceiling thickness3/4" to 1"
Ambient range-20°C to 40°C
ComplianceETL · JA8 · Title 24
Warranty5 Year
Want a second opinion on this specification? Talk to a specialist · Find your local agent

SENSE 2.0

SEN-2R-A-8L-NF-940-SP

Download Spec Sheet
